OPENHOUSE BIOCLIMATICA THE SPACE THAT WASN'T THERE Increase your living space
REQUEST
Tent information

Openhouse BIOCLIMATICA

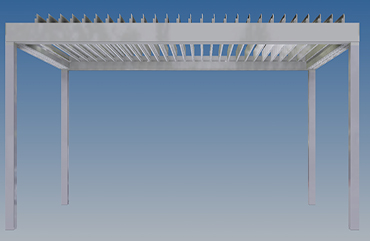

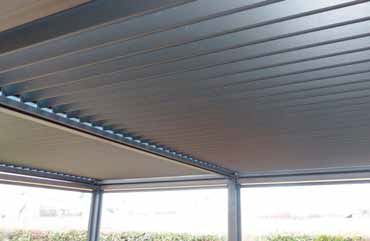

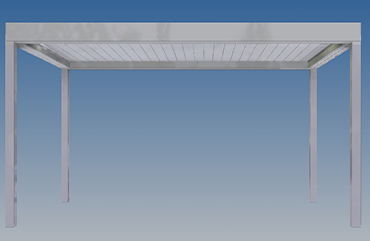

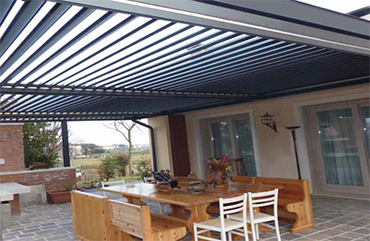

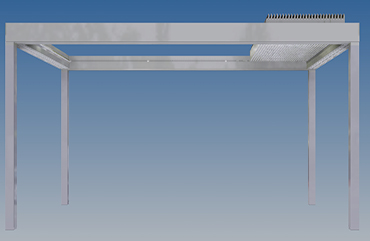

La BIOCLIMATICA ORIENTABILE ED IMPACCHETTABILE is a Pergola in aluminum, with a modern design
- Aluminum structure in White, Ivory, Brown colors, Anthracite.
- Slats in painted aluminum 180.9 mm.
- Slat orientation from 0 ° to 90 °.
- double motor movement with remote control (standard)
- Minimum slope for water runoff 5% on the leaning model.
- Wind resistance class 6.
- Water discharge inside the legs.
- Protection from rain, sun and high resistance to atmospheric agents.
- Possibility to realize modular covers and to close the sides with Tcl or glass curtains.
- Wall mount; legs height 230 cm standard.

Recommended maximum size:

1 MODULE
Width cm 350
Projection 600 cm
LAMELLA 180.9 X 32

Width cm 400
Projection 600 cm
LAMELLA 186.5 X 55

2 MODULES
Width cm 700
Projection 600 cm
LAMELLA 180.9 X 32

Width cm 800
Projection cm 504
LAMELLA 186.5 X 55

3 MODULES
Width 1050 cm
Projection 600 cm
LAMELLA 180.9 X 32


Wind resistance
UNI EN 13561
Technical class 6
Resistance to water pockets
UNI EN 1933
Technical class 2
Measurements
Width Cm 600
Projection Cm 400
You can view the videos or download the pdf only if you are a registered user.
